Adjustable 60T / 100T Tank Rotators Pipe Welding Vessel Turning Rolls

Adjustable Tank Rotators

Quick Details

• Metallic rollers with groove to support fake flange;
• With travel boogie, very convenient to transfer the material;
• Roller distance is bolt adjustable and roller surrounding angle among 45°～110°;
• Hand pendant with Forward-Stop-Reverse, boogie travel buttons and speed potentiometer are standard;

1. Introduction

This is special roller beds or pipe welding rotator for tank/pipe painting processes. While, it also can be considered as common turning rolls in your production. We only have 60T&100T as our standard roller beds.

If you have special requirements, please contact us.

2. Main Parameters

3. Main features

The standard models of our pipe welding rotators or roller beds have the following features:

• This special turning rolls consist of one driving bolt adjustable turning roll, one idle bolt adjustable turning roll and electric control system, etc;
• All the connectors are designed with safety protections and improved airproof performance to ensure the machine can work in severe surroundings;
• There is metallic wheel groove in the middle of roller which is used for supporting the fake flange during painting;
• Steplessly controllable rotary drives by means of A.C. anti-explosion motor drive via self-locking worm gear reducers;
• Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
• With travel boogie, very convenient to transfer the material;
• Metallic wheels;
• Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
• Fine machining to upper surface of base;
• Roller distance is bolt adjustable and roller surrounding angle among 45°～110°;
• All motion parts have lubrication system;
• Main electric elements are ABB/Siemens brands;
• Hand pendant with Forward-Stop-Reverse, boogie travel buttons and speed potentiometer are standard;
• Lifting lug on the base of roller bed;
• Standard color:

Optional features:

• Foot switch;
• Servo drive;

4. Supply range

• Driving turning roll 1set
• Idle turning roll 1set
• Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m] 1set
• Technical documents (with manual book, conformity certificate, packing list, etc) 1set

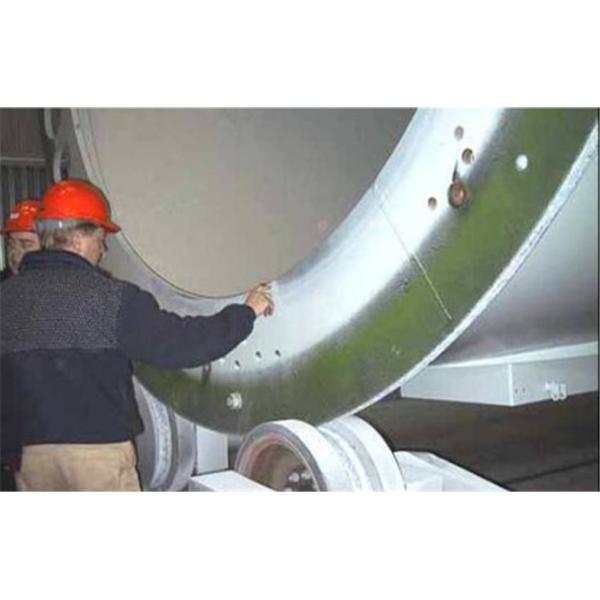

5. Reference photo

6. Comparative advantage

• ISO9000&CE certified;
• Professional and experienced engineer team to ensure the advanced design about structure and electric;
• Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
• Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
• Optimum materials and outsourcings to ensure the best performance;
• Commissioning and testing before delivery;
• Factory inspection is encouraged;
